AU Series - 規格

AU Series 分析天秤

AU 系列規格表

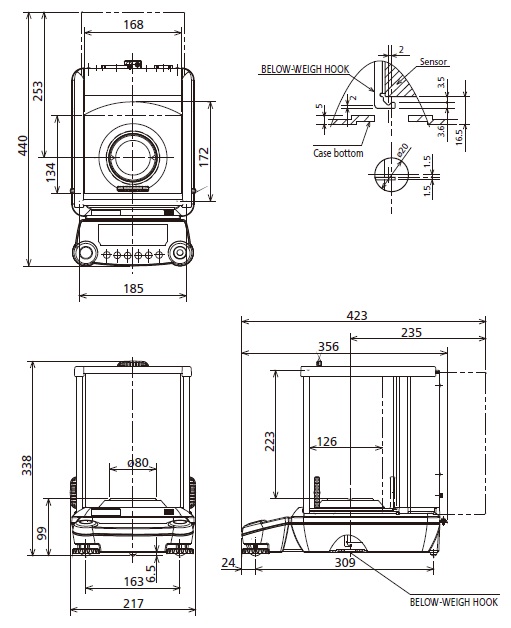

機台尺寸

AUW/AUX/AUY 系列

Measurements in mm. 1mm=.03937"

AUX120

Capacity	120 g
Minimum display	0.1 mg
Repeatability (Standard deviation, σ)	≤0.1 mg
Linearity	±0.2 mg
Response time (typical)	3 s
Pan Size	80 mm dia. approx.
Calibration modes	PSC, Touch-key with built-in or external weight

顯示較少

AUY220

Capacity	220 g
Minimum display	0.1 mg
Repeatability (Standard deviation, σ)	≤0.1 mg
Linearity	±0.2 mg
Response time (typical)	3 s
Pan Size	80 mm dia. approx.
Calibration modes	Touch-key with external weight

顯示較少

AUY120

Capacity	120 g
Minimum display	0.1 mg
Repeatability (Standard deviation, σ)	≤0.1 mg
Linearity	±0.2 mg
Response time (typical)	3 s
Pan Size	80 mm dia. approx.
Calibration modes	Touch-key with external weight

顯示較少

AUW320

Capacity	320 g
Minimum display	0.1 mg
Repeatability (Standard deviation, σ)	≤0.15 mg
Linearity	±0.3 mg
Response time (typical)	3 s
Pan Size	80 mm dia. approx.
Calibration modes	PSC, Clock-CAL, Touch-key with built-in or external weight

顯示較少

AUW220

Capacity	220 g
Minimum display	0.1 mg
Repeatability (Standard deviation, σ)	≤0.1 mg
Linearity	±0.2 mg
Response time (typical)	3 s
Pan Size	80 mm dia. approx.
Calibration modes	PSC, Clock-CAL, Touch-key with built-in or external weight

顯示較少

AUW120

Capacity	120 g
Minimum display	0.1 mg
Repeatability (Standard deviation, σ)	≤0.1 mg
Linearity	±0.2 mg
Response time (typical)	3 s
Pan Size	80 mm dia. approx.
Calibration modes	PSC, Clock-CAL, Touch-key with built-in or external weight

顯示較少

AUX320

Capacity	320 g
Minimum display	0.1 mg
Repeatability (Standard deviation, σ)	≤0.15 mg
Linearity	±0.3 mg
Response time (typical)	3 s
Pan Size	80 mm dia. approx.
Calibration modes	PSC, Touch-key with built-in or external weight

顯示較少

AUX220

Capacity	220 g
Minimum display	0.1 mg
Repeatability (Standard deviation, σ)	≤0.1 mg
Linearity	±0.3 mg
Response time (typical)	3 s
Pan Size	80 mm dia. approx.
Calibration modes	PSC, Touch-key with built-in or external weight

顯示較少
