大氣成份分析案例

使用溫室氣體分析儀，每次樣品分析時間只需約10分鐘。

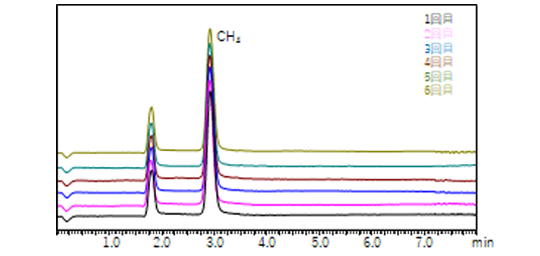

  • FID

    FID

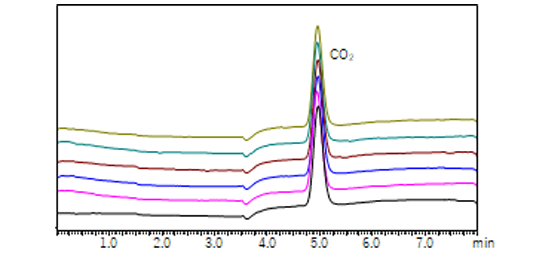

  • TCD

    TCD

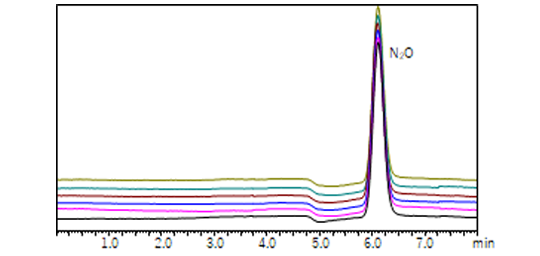

  • ECD

    ECD

  •   CH4 CO2 N2O
    面積再現性 (%RSD) 0.53 0.49 0.41
    定量值 (ppm) 2.02 434 0.332

    大氣分析的面積再現性與定量值(分析6次)
