MALDI-8030 - 規格

雙極性桌上型線性 MALDI-TOF 質譜儀

收藏

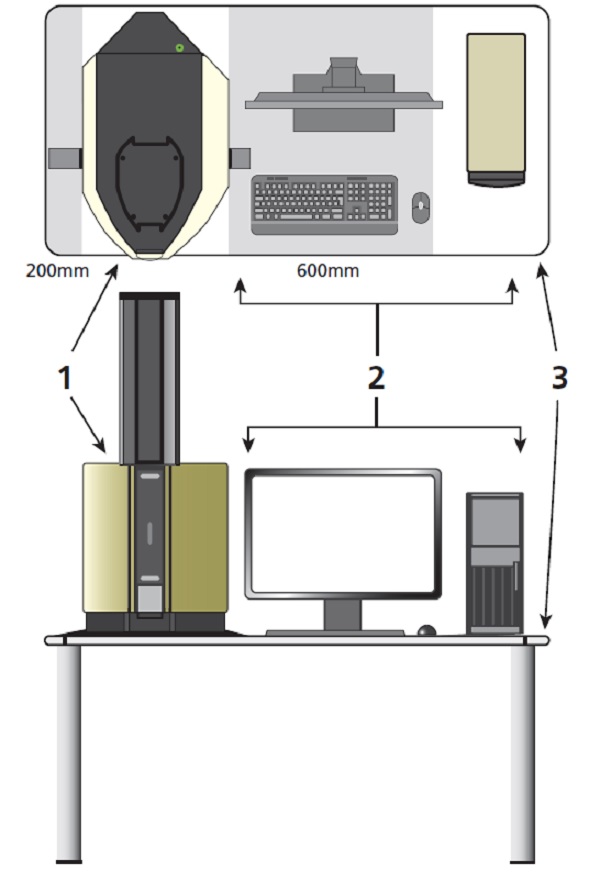

安裝範例

Installation example



No. 說明 尺寸 (mm) 重量 (kg)
W D H
          1 MALDI-8030         600         745        1055           92
          2 Control PC, monitor, keyboard
and mouse (reference)		         850
     approx.		         550
      approx.		         500
      approx.		          10
      approx.
          3      Table (reference)        1500         750         750

Specifications

Mass range

m/z 1 - 500,000
Mass resolution

>5000 FWHM – ACTH 18-39 (m/z 2465)
Mass accuracy

<20 ppm with internal calibration
<150 ppm with external calibration*
* Nearest neighbour external calibration on FlexiMass-SR48 target, within 30 minutes
Sensitivity

250 fmol – bovine serum albumin (loaded)
250 amol – Glu-1-Fibrinopeptide B (loaded)
Size and weight

450 x 745 x 1055 mm [Including Stabilizer: 600 x 745 x 1055 mm]
92 kg

All performance data are acquired using standard test samples on a FlexiMass-SR48 stainless steel target.
