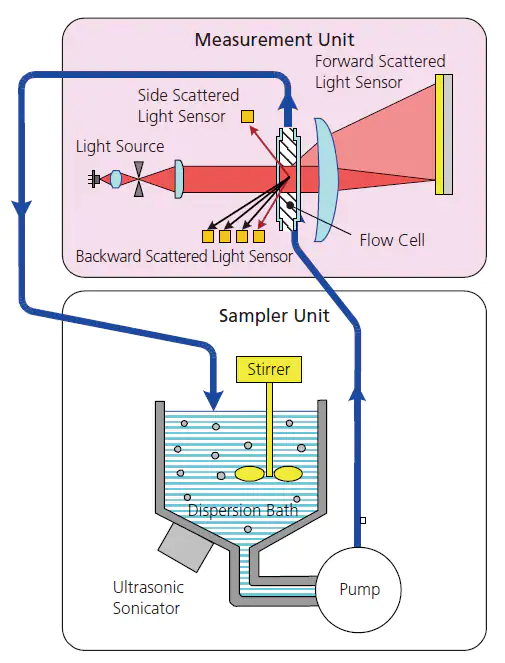

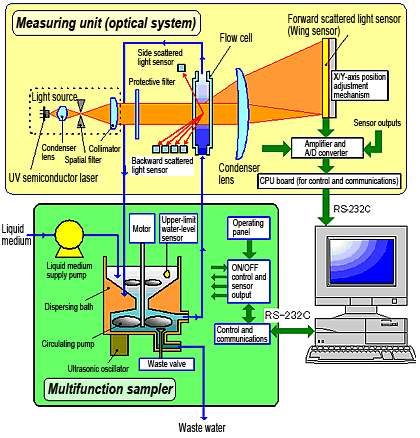

測量裝置 (光學系統) 和多功能進樣器的配置與結構。

SALD-MS Series 規格

SALD-M571

P/N(115 V Model)

347-60711-20

P/N(230 V Model)

347-60711-30

Dispersion Bath Capacity

280cm3

Max. Pump
Flow Rate

1600cm3/min

Liquid Media
Supply Pump

Yes

PC
Control

Yes

Applicable
Model

SALD-7101

*1 The sample quantity is changable. 100mL, 200mL or 300mL can be selected.

顯示更多
顯示較少

SALD-MS23

P/N(115 V Model)

347-61701-42

P/N(230 V Model)

347-61701-44

Dispersion Bath Capacity

100~300cm3 *1

Max. Pump
Flow Rate

1600cm3/min

Liquid Media
Supply Pump

Yes

PC
Control

Yes

Applicable
Model

SALD-2300

顯示更多
顯示較少

SALD-MS30

P/N(115 V Model)

346-63701-20

P/N(230 V Model)

346-63701-30

Dispersion Bath Capacity

400cm3

Max. Pump
Flow Rate

5000cm3/min

Liquid Media
Supply Pump

No

PC
Control

No

Applicable
Model

SALD-3101

顯示更多
顯示較少
