Micro Sample Measurement

微小固體樣品量測

微小固體樣品量測

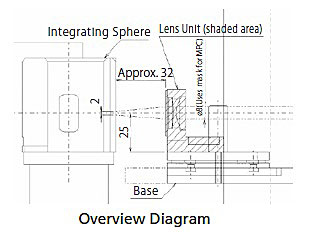

本裝置使用透鏡和遮罩,以遮蔽通過積分球開口的光束。最小光束直徑約為 1 mm。同時需要一個樣品底盤積分球裝置。

註:對於 UV-2600 系列,需要另一個 MPC-2600A 和 BIS-3100 樣品底盤積分球組。
對於 UV-3600Plus 系列,需要另一個 MPC-603A 和 BIS-603 樣品底盤積分球組。
對於 SolidSpec 系列,需要另一個 BIS-3700/3700DUV。

微量樣品架

這可容納直徑約 5 至 10 mm 平方,且約 1 至 5 mm 厚的固體樣品。樣品透過從上下夾箝固定。
