Nexera Prep - 規格
製備級液相層析儀
出色的系統擴充能力
溶劑輸送裝置可容納各種回收量
製備規模和最大負載指南

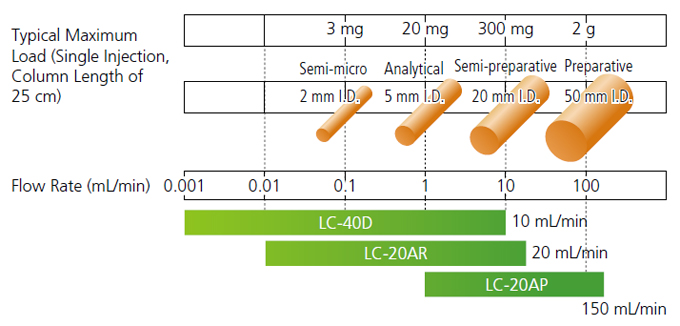

右圖顯示了當目標組分在移動相中具有高溶解性、與雜質分離且離子受到抑制時，250 mm 長管柱的總組分容量指南。對於等度沖提，原則上總組分容量與管柱體積成正比。
LC-40D
LC-40D
• This solvent delivery unit can handle flow rates ranging from those used in analytical scale to those used in semi-preparative (up to 10 mL/min).
• High-precision analysis is possible even in the semi-micro flow-rate range.
Guidelines for Preparative Scale and Maximum Load
| Solvent delivery method |
Parallel-type double plunger |
|---|---|
| Plunger capacity |
10 μL |
| Maximum discharge pressure |
44 MPa |
| Flow rate setting range |
0.0001 to 5.0000 mL/min (1.0 to 44 MPa) |
| Flow rate accuracy |
No more than ±1% or ±2 μL/min, whichever |
| Flow rate precision |
No more than 0.06% RSD or 0.02 min SD, whichever is greater |
| Constant pressure solvent delivery |
Supported |
| Plunger rinsing mechanism |
Optional available |
| Operating temperature range |
4 to 35 °C |
| Size and weight |
W260 × D500 × H140 mm, 10 kg |
LC-20AR
This solvent delivery unit can handle flow rates used in semi-preparative scale (up to 20 mL/min).
Using a recycle kit enables semi-preparative recycling.
Supports Semi-Preparative and Recycle Preparative
| Solvent delivery method |
Parallel-type double plunger |
|---|---|
| Plunger capacity |
47 μL |
| Maximum discharge pressure |
49 Mpa |
| Flow rate setting range |
0.001 to 20.000 mL/min |
| Flow rate accuracy |
No more than ±1% or ±10 μL/min,whichever is greater (0.1 to 5.0 mL/min) |
| Flow rate precision |
No more than 0.08% RSD or 0.02 min SD, whichever is greater |
| Constant pressure solvent delivery |
Supported |
| Plunger rinsing mechanism |
Syringe or rinsing pump |
| Operating temperature range |
4 to 35 °C |
| Size and weight |
W 260 x H140 x D 500 mm，16 kg |
LC-20AP
High flow rates (up to 150 mL/min) enable highly efficient, large-scale preparative fractionation.
Large-scale prep solvent delivery fully supports the preparative fractionation workflow including reinjection to assess purity.
Combine with an FCV-200AL low-pressure gradient unit to perform gradient analysis using up to four mobile phases.
Supports Large-Scale Preparative Fractionation
| Solvent delivery method |
Parallel-type double plunger |
|---|---|
| Plunger capacity |
250 μL |
| Maximum discharge pressure |
42 Mpa |
| Flow rate setting range |
0.01 to 150.00 mL/min |
| Flow rate accuracy |
No more than ±1% (1 mL/min, 10 MPa) |
| Flow rate precision |
No more than 0.1% RSD or 0.02 min SD,whichever is greater |
| Constant pressure solvent delivery |
Supported |
| Plunger rinsing mechanism |
Syringe or rinsing pump |
| Operating temperature range |
4 to 35 °C |
| Size and weight |
W 260 x H210 x D 500 mm，19 kg |
