DSES-1000

Long-Travel Extensometer for Soft Materials

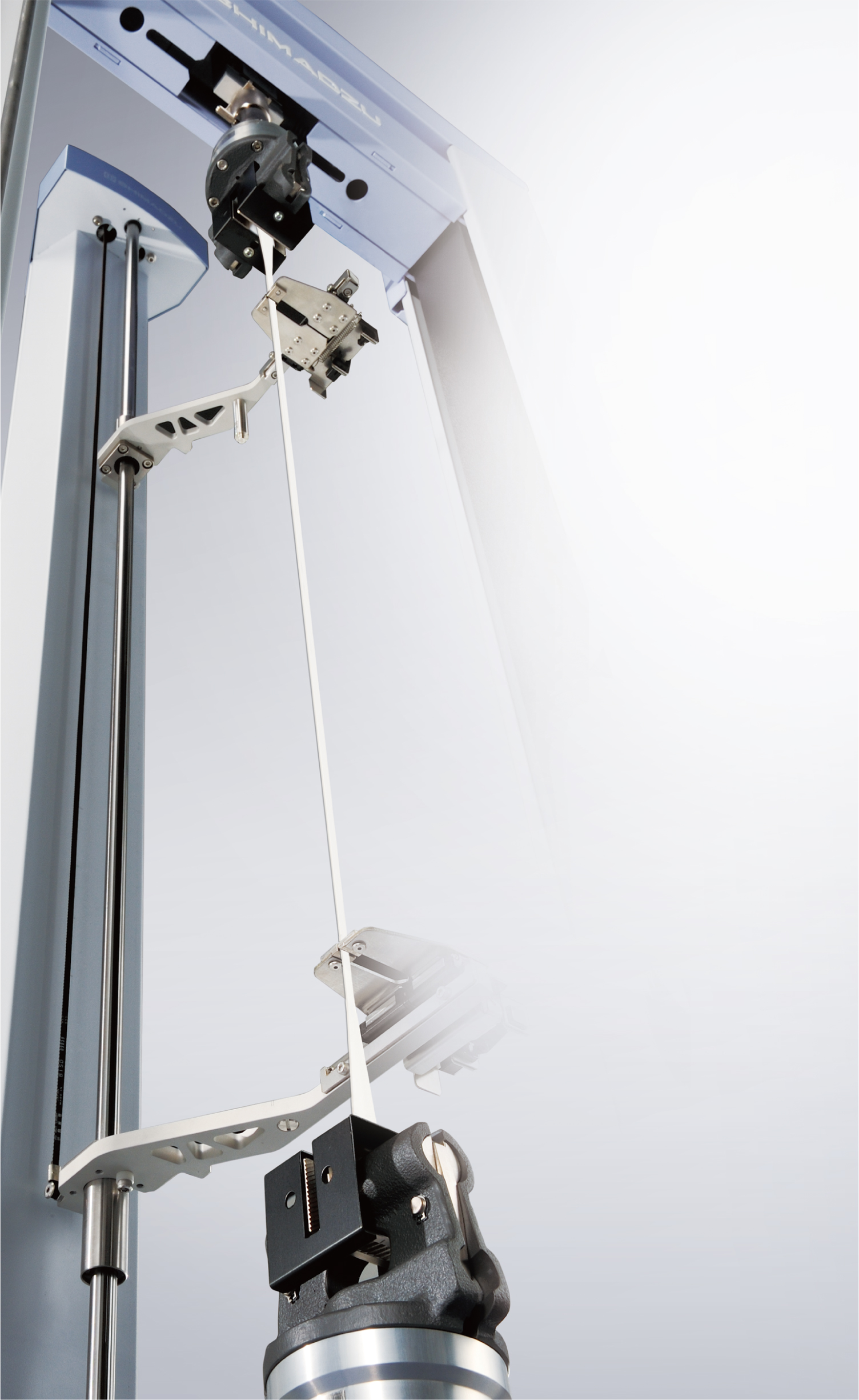

易用且甚至更精確的長行程伸縮計DSES-1000 是一款長行程接觸式伸縮計，能夠在橡膠和其他軟材料的拉伸試驗中量測位移直至斷點。使用簡單一步操作將上下臂夾箝至相應的應變片位置，而每一臂獨立追蹤樣品延長。

特色

1000 mm 最大移動距離

DSES-1000 使用 10 mm 的標距可量測最大 4000% 的延長、20 mm 的標距為 2000%、25 mm 的標距為 1600%，或 40 mm 的標距為 1000%。一個浮動臂機構 (專利申請中) 確保可靠進行試驗，不需要讓臂從樣品分離。
±0.2% 相對延長測量精確度

對於 50 和 1000 mm 之間的位移測量，提供 ±0.2% 的精確度，可用高精確度進行長位移距離的測量。
快速夾持

側向快速夾持機構，可輕易將伸縮計邊緣與樣品的固定位置置中。伸縮計也可以先連接到樣品，然後再夾緊樣品。

更多詳情

影片

DSES-1000 Long-Travel Extensometer for Soft Materials
