SALD-7500nano 奈米粒子徑分布測定裝置

系統結構

演進的奈米粒徑分析儀,可用於準確評估奈米顆粒
主機 (測量裝置):SALD-7500nano

  • 紫光半導體雷射 (波長:405 nm) 用來做為光源。不需要維護,例如補充氣體。
  • 檢測器包含位於前方的 78 個元件,位於側邊的一個元件,以及位於後方的 5 個元件,總計 84 個元件。此外,所有檢測器均採用支援紫光半導體雷射波長的高靈敏度光感應器。
  • 容槽的固定部分和容槽托架,可使用滑動機構從裝置前方拉出。如此可輕易安裝並更換容槽,以及進行維護。
  • WingSALD ll 軟體為標準配備。提供多用途資料處理和簡單高度的操作,適合每種目的及處理要求。

將選配裝置加至 SALD-7500nano 以設計寬廣範圍的系統。

批次容槽和高濃度樣品測量系統可設置到測量裝置內。
小容量測量系統 (SALD-7500nano 和 SALD-BC75)
高濃度樣品測量系統 (SALD-7500nano 和 SALD-HC75)
超小容量測量 (SALD-7500nano 和SALD-HC75 及「附有刻痕的玻片」。

Easy Measurement under PC ControlSampler SALD-MS75

  • 顆粒團塊會分散到液態介質中,並在它們於測量裝置內的流通槽與進樣器內的分散浴之間循環時測量。
  • 分散浴包含一個攪拌器和一個超音波振盪器。一個泵將分散的懸浮液送到流通槽。
  • 泵為特殊設計,可確保液態介質和顆粒循環。2 mm 的不鏽鋼珠循環,並且能夠測量。
  • 可從 PC 控制。
  • 可使用大部分溶劑做為分散介質。

樣品裝置 SALD-MS75 溶劑耐受性

註 1

kanakubo@sac.shimadzu.co.jp

註 2

僅適用於液體泵。不用於液體供應泵。

註 3

參考樣品的測量需要超音波清潔儀器。

測量數據

<div class="article-set"> <h3 class="heading-normal">Measurement data</h3>  <div class="text-center"><img alt="" height="194" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008inyp.jpg" width="728" /></div> </div>  <div class="article-set"> <h3 class="heading-normal">Ideal for Measurement with Small Amounts of Organic Solvent<br /> <font size="3">Batch Cell SALD-BC75</font></h3>  <section class="image-set"> <figure class="image-set-image image-set-image-pull-left"><img alt="" height="263" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008io11.jpg" width="383" /></figure>  <ul class="list-with-hyphen"> 	<li>Measurement is possible with a small amount of sample (i.e., measured particles) and liquid medium (i.e., dispersion medium).</li> 	<li>The capacity of the batch cell is only 7cm3 an so waste treatment for the suspension canbe performed with relatively small amounts.</li> 	<li>The vertical motions of the stirring plate prevent sedimentation of the particles.</li> 	<li>The funnel reduces the possibility of sample spillage.</li> 	<li>A tetrafluoroethylene resin funnel is provided to reduce the possibility of suspension getting on the hands of the user. It also prevents the cell surface from becoming dirty.</li> </ul> </section> </div>  <div class="article-set"> <h3 class="heading-normal">Measurement data</h3>  <div class="text-center"><img alt="" height="175" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008io0t.jpg" width="690" /></div> </div>  <div class="article-set"> <h3 class="heading-normal">Measurement Samples without Dilution<br /> <font size="3">High-Concentration Sample Measurement System: SALD-HC75</font></h3>  <ul class="list-with-hyphen"> 	<li>High-concentration samples can be measured using the laser diffraction method.</li> 	<li>Measurement is possible by simply holding the high-concentration sample particles to be measured between two glass slides.</li> 	<li>Samples for wh

非常適合測量少量有機溶劑
Batch Cell SALD-BC75

<div class="article-set"> <h3 class="heading-normal">Measurement data</h3>  <div class="text-center"><img alt="" height="194" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008inyp.jpg" width="728" /></div> </div>  <div class="article-set"> <h3 class="heading-normal">Ideal for Measurement with Small Amounts of Organic Solvent<br /> <font size="3">Batch Cell SALD-BC75</font></h3>  <section class="image-set"> <figure class="image-set-image image-set-image-pull-left"><img alt="" height="263" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008io11.jpg" width="383" /></figure>  <ul class="list-with-hyphen"> 	<li>Measurement is possible with a small amount of sample (i.e., measured particles) and liquid medium (i.e., dispersion medium).</li> 	<li>The capacity of the batch cell is only 7cm3 an so waste treatment for the suspension canbe performed with relatively small amounts.</li> 	<li>The vertical motions of the stirring plate prevent sedimentation of the particles.</li> 	<li>The funnel reduces the possibility of sample spillage.</li> 	<li>A tetrafluoroethylene resin funnel is provided to reduce the possibility of suspension getting on the hands of the user. It also prevents the cell surface from becoming dirty.</li> </ul> </section> </div>  <div class="article-set"> <h3 class="heading-normal">Measurement data</h3>  <div class="text-center"><img alt="" height="175" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008io0t.jpg" width="690" /></div> </div>  <div class="article-set"> <h3 class="heading-normal">Measurement Samples without Dilution<br /> <font size="3">High-Concentration Sample Measurement System: SALD-HC75</font></h3>  <ul class="list-with-hyphen"> 	<li>High-concentration samples can be measured using the laser diffraction method.</li> 	<li>Measurement is possible by simply holding the high-concentration sample particles to be measured between two glass slides.</li> 	<li>Samples for wh
  • 可用少量樣品 (亦即,測得顆粒) 和液態介質 (亦即,分散介質) 進行測量。
  • 批次容槽的容量只有 7cm3,因此可用相對少量進行懸浮液的廢液處理。
  • 攪拌盤的垂直移動可防止顆粒沉降。
  • 漏斗可減少樣品濺灑的可能性
  • 提供四氟乙烯樹脂漏斗,以減少懸浮液接觸到使用者雙手的可能性。也可以防止容槽表面髒污。

測量數據

<div class="article-set"> <h3 class="heading-normal">Measurement data</h3>  <div class="text-center"><img alt="" height="194" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008inyp.jpg" width="728" /></div> </div>  <div class="article-set"> <h3 class="heading-normal">Ideal for Measurement with Small Amounts of Organic Solvent<br /> <font size="3">Batch Cell SALD-BC75</font></h3>  <section class="image-set"> <figure class="image-set-image image-set-image-pull-left"><img alt="" height="263" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008io11.jpg" width="383" /></figure>  <ul class="list-with-hyphen"> 	<li>Measurement is possible with a small amount of sample (i.e., measured particles) and liquid medium (i.e., dispersion medium).</li> 	<li>The capacity of the batch cell is only 7cm3 an so waste treatment for the suspension canbe performed with relatively small amounts.</li> 	<li>The vertical motions of the stirring plate prevent sedimentation of the particles.</li> 	<li>The funnel reduces the possibility of sample spillage.</li> 	<li>A tetrafluoroethylene resin funnel is provided to reduce the possibility of suspension getting on the hands of the user. It also prevents the cell surface from becoming dirty.</li> </ul> </section> </div>  <div class="article-set"> <h3 class="heading-normal">Measurement data</h3>  <div class="text-center"><img alt="" height="175" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008io0t.jpg" width="690" /></div> </div>  <div class="article-set"> <h3 class="heading-normal">Measurement Samples without Dilution<br /> <font size="3">High-Concentration Sample Measurement System: SALD-HC75</font></h3>  <ul class="list-with-hyphen"> 	<li>High-concentration samples can be measured using the laser diffraction method.</li> 	<li>Measurement is possible by simply holding the high-concentration sample particles to be measured between two glass slides.</li> 	<li>Samples for wh

未稀釋情況下測量樣品
高濃度樣品測量系統:SALD-HC75

  • 高濃度樣品可使用雷射繞射方法測量。
  • 可透過在兩塊玻片之間固定要測量的高濃度樣品顆粒以進行測量。
  • 粒徑分佈可能因為稀釋改變的樣品,可以在原始狀態下或所需的最低程度稀釋下測量,並可取得測量對象的真實影像。
  • 市售洗手乳、洗面乳和潤絲精,幾乎不需要任何預處理就可測量。
<div class="article-set"> <h3 class="heading-normal">Measurement data</h3>  <div class="text-center"><img alt="" height="194" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008inyp.jpg" width="728" /></div> </div>  <div class="article-set"> <h3 class="heading-normal">Ideal for Measurement with Small Amounts of Organic Solvent<br /> <font size="3">Batch Cell SALD-BC75</font></h3>  <section class="image-set"> <figure class="image-set-image image-set-image-pull-left"><img alt="" height="263" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008io11.jpg" width="383" /></figure>  <ul class="list-with-hyphen"> 	<li>Measurement is possible with a small amount of sample (i.e., measured particles) and liquid medium (i.e., dispersion medium).</li> 	<li>The capacity of the batch cell is only 7cm3 an so waste treatment for the suspension canbe performed with relatively small amounts.</li> 	<li>The vertical motions of the stirring plate prevent sedimentation of the particles.</li> 	<li>The funnel reduces the possibility of sample spillage.</li> 	<li>A tetrafluoroethylene resin funnel is provided to reduce the possibility of suspension getting on the hands of the user. It also prevents the cell surface from becoming dirty.</li> </ul> </section> </div>  <div class="article-set"> <h3 class="heading-normal">Measurement data</h3>  <div class="text-center"><img alt="" height="175" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008io0t.jpg" width="690" /></div> </div>  <div class="article-set"> <h3 class="heading-normal">Measurement Samples without Dilution<br /> <font size="3">High-Concentration Sample Measurement System: SALD-HC75</font></h3>  <ul class="list-with-hyphen"> 	<li>High-concentration samples can be measured using the laser diffraction method.</li> 	<li>Measurement is possible by simply holding the high-concentration sample particles to be measured between two glass slides.</li> 	<li>Samples for wh

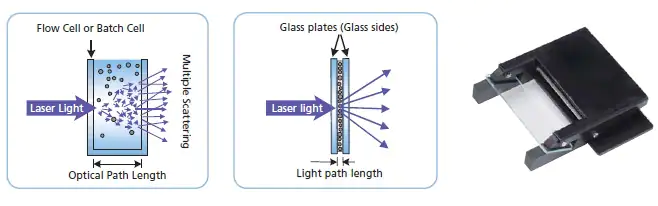

若使用標準流通槽或批次容槽測量高濃度樣品,長光徑長度會導致多重散射,以致難以取得準確測量。不過使用此系統時,可在兩塊玻片之間固定高濃度樣品顆粒,縮短光徑長度並避免多重散射的負面作用,並可進行準確測量。

玻璃樣品板 (有刻痕的玻璃) (選配)

<div class="article-set"> <h3 class="heading-normal">Measurement data</h3>  <div class="text-center"><img alt="" height="194" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008inyp.jpg" width="728" /></div> </div>  <div class="article-set"> <h3 class="heading-normal">Ideal for Measurement with Small Amounts of Organic Solvent<br /> <font size="3">Batch Cell SALD-BC75</font></h3>  <section class="image-set"> <figure class="image-set-image image-set-image-pull-left"><img alt="" height="263" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008io11.jpg" width="383" /></figure>  <ul class="list-with-hyphen"> 	<li>Measurement is possible with a small amount of sample (i.e., measured particles) and liquid medium (i.e., dispersion medium).</li> 	<li>The capacity of the batch cell is only 7cm3 an so waste treatment for the suspension canbe performed with relatively small amounts.</li> 	<li>The vertical motions of the stirring plate prevent sedimentation of the particles.</li> 	<li>The funnel reduces the possibility of sample spillage.</li> 	<li>A tetrafluoroethylene resin funnel is provided to reduce the possibility of suspension getting on the hands of the user. It also prevents the cell surface from becoming dirty.</li> </ul> </section> </div>  <div class="article-set"> <h3 class="heading-normal">Measurement data</h3>  <div class="text-center"><img alt="" height="175" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008io0t.jpg" width="690" /></div> </div>  <div class="article-set"> <h3 class="heading-normal">Measurement Samples without Dilution<br /> <font size="3">High-Concentration Sample Measurement System: SALD-HC75</font></h3>  <ul class="list-with-hyphen"> 	<li>High-concentration samples can be measured using the laser diffraction method.</li> 	<li>Measurement is possible by simply holding the high-concentration sample particles to be measured between two glass slides.</li> 	<li>Samples for wh

有效測量具有相對低濃度的樣品,或者只能少量使用的昂貴樣品。

測量數據

<div class="article-set"> <h3 class="heading-normal">Measurement data</h3>  <div class="text-center"><img alt="" height="194" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008inyp.jpg" width="728" /></div> </div>  <div class="article-set"> <h3 class="heading-normal">Ideal for Measurement with Small Amounts of Organic Solvent<br /> <font size="3">Batch Cell SALD-BC75</font></h3>  <section class="image-set"> <figure class="image-set-image image-set-image-pull-left"><img alt="" height="263" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008io11.jpg" width="383" /></figure>  <ul class="list-with-hyphen"> 	<li>Measurement is possible with a small amount of sample (i.e., measured particles) and liquid medium (i.e., dispersion medium).</li> 	<li>The capacity of the batch cell is only 7cm3 an so waste treatment for the suspension canbe performed with relatively small amounts.</li> 	<li>The vertical motions of the stirring plate prevent sedimentation of the particles.</li> 	<li>The funnel reduces the possibility of sample spillage.</li> 	<li>A tetrafluoroethylene resin funnel is provided to reduce the possibility of suspension getting on the hands of the user. It also prevents the cell surface from becoming dirty.</li> </ul> </section> </div>  <div class="article-set"> <h3 class="heading-normal">Measurement data</h3>  <div class="text-center"><img alt="" height="175" src="/an/sites/shimadzu.com.an/files/d7/ckeditor/an/powder/n9j25k000008hayf-img/n9j25k000008io0t.jpg" width="690" /></div> </div>  <div class="article-set"> <h3 class="heading-normal">Measurement Samples without Dilution<br /> <font size="3">High-Concentration Sample Measurement System: SALD-HC75</font></h3>  <ul class="list-with-hyphen"> 	<li>High-concentration samples can be measured using the laser diffraction method.</li> 	<li>Measurement is possible by simply holding the high-concentration sample particles to be measured between two glass slides.</li> 	<li>Samples for wh

WingSALD II

Measurement and Data Display Functions

Measurement of Particle Size Distribution

Allows measurements using measurement assistant unction (interactive process based on SOP) and manual mode

Automatic Calculation of Refractive Index

Automatic calculation by Light Intensity Distribution Reproduction (LDR) method based on specified substance name or range

Real-Time Display

Particle size distribution / Light intensity distribution simultaneous display

Recalculation of Particle Size Distribution

Max. 200 data batch calculation or individual data calculation

Display of Particle Size Distribution Data

Max. 200 data overlay graph or individual data graph

Display of Light Intensity Distribution

Max. 200 data overlay graph or individual data graph

Diagnostics/Adjustments

Self-diagnostic functions

Statistical Data Processing

Max. 200 data (Max. 200 data overlay graph)

Time Series Analysis

Max. 200 data

3-Dimensional Graph

Max. 200 data

Data Transfer via Clipboard

Image Output, Image Output

Data Sorting

Sort by file name, sample ID, sample number, or refractive index.

Note 5: The Light Intensity Distribution Reproduction (LDR) method calculates the refractive index from the conformity between the measured light intensity distribution pattern and the light intensity distribution data reproduced (calculated) from the particle size distribution data. LDR is a proprietary method developed by Shimadzu. Two papers have been published on this method. It is sometimes called the "Kinoshita Method" at academic conferences.

顯示更多
顯示較少

WingSALD II

Output Conditions

Particle Size Distribution (μm) Number of Divisions

Fixed 51 / 101 divisions / Optional (can be set by user) 51 divisions * 10 tables

Particle Mass Distribution (%) Number of Divisions

Fixed 51 divisions, Optical (can be set by user) 51 divisions * 10 tables

Dimension of Particle Amount

Count, length, area or volume

Expression of Cumulative Distribution

Undersize, oversize

Expression of Data Frequency

q, q / Δ×, q / Δlog×

Smoothing Level

10 Level

Distribution Function Fitting

Rosin-Rammler distribution, logarithmic Gaussian distribution

Data Shifting

±10 levels

Report Functions

Batch output possible by selecting single data (template 6), overlay data ( template 5), statistical data, time-series data, or 3D data

顯示更多
顯示較少

WingSALD II

Data Analysis

Scattering Angle Evaluation

Max. 200 data overlay graph or individual data graph

Data Conversion Function

Emulation of particle distribution data by other instruments or measuring principles

Mixing Simulation Function

Max. 6 points

Data Connection Function

2 data connections

Continuous Measurements Function

Measurement interval: 1 s min., Save up to 200 data points

顯示更多
顯示較少

SALD-7500nano

Measurement unit

Measurement range

7 nm to 800 µm

Light source

Violet semiconductor laser (405 nm wavelength)

Detection elements

84 elements

Options

Batch cell, multifunction sampler, high-concentration measurement system

顯示更多
顯示較少

SALD-7500nano

General Specifications

Measurement principle

Laser Diffraction Method

Measurement range

7 nm (0.007 μm) to 800 μm (when using sampler)
7 nm (0.007 μm) to 400 μm (when using batch cell)
30 nm (0.03 μm) to 280 μm (when using high-concentration sample unit)

Note 1: The measurement range varies according to the shape etc. of the particle.

SALD-7500nano

Measurement unit

Light source

Semiconductor laser (Wavelength 405 nm)

Light detector

Detector elements for violet semiconductor laser Total 84 elements
(78 forward, 1 side, 5 back)

System Compliance

Class 1 Laser Product, CE

Required power supply

AC 100 V±10%, 1 A, 50/60 Hz

Dimensions & weight

Approx. 680 × D280 × H430 mm, Approx.32 kg

Operation environment

Temperature : 10 to 30°C , Humidity : 20 to 80% (no condensation)

Note 2: Reference sample and USB cable (2 m) supplied as standard
Note 3: Ultrasonic cleaning instruments are needed for the measurement of reference sample.

顯示更多
顯示較少

SALD-MS75

Sampler

Dispersing bath

Capacity : 100 / 200 / 300 mL

Sonicator

Frequency : about32 kHz, output : about 40 W

Liquid Pump

Radial pump, maximum flow rate 2000 cm3/min

Liquid Pump Material

Stainless (SUS 304, SUS 316), Tetrafluoroethylene (PTFE),
Perfluoroelastmor (FEP)

Liquid Supply Pump

Diaphragm pump, maximum flow rate : 750cm3/min

Liquid Supply Pump Material

Polypropylene

Flow Cell

Quartz glass

Required power supply

AC 100 V±10%, 2 A, 50/60 Hz

Dimensions & weight

Approx. W390 × D520 × H430 mm, Approx.18 kg

Operating Environment

Temperature: 10 to 30°C, Humidity: 20 to 80% (no condensation)

Note 4: USB cable (2 m) supplied as standard

顯示更多
顯示較少

SALD-BC75

Batch Cell

Cell Material

Quartz glass

Required Liquid Volume

Approx. 5 cm3

Stirrer Mechanism

Up-and-down movement of blade

Dimensions & weight

Approx. W100 × D120 × H140 mm, Approx. 0.8 kg

Operating Environment

Temperature: 10 to 30°C, Humidity: 20 to 80% (no condensation)

顯示更多
顯示較少

SALD-HC75

High-concentration Sample Measurement System

Cell Material

Borosilicate glass

Required Liquid Volume

Approx. 0.15 cm3

Dimensions & weight

Approx. W20 × D100 × H9 mm, Approx. 0.2 kg

Operating Environment

Temperature: 10 to 30°C, Humidity: 20 to 80% (no condensation)

顯示更多
顯示較少
