應用軟體

應用軟體適用於各種樣品,不論是從軟到硬的材料,可為觀察您想觀察的事物提供完整協助。

硬材質 ・Nanoparticles ・Nanofibers ・Fillers ・Ceramics ・Metals
Soft Materials ・Plastics ・Rubbers ・Films ・Biological materials ・Composite materials
Life Sciences and Healthcare ・Lipid membranes ・Cells ・Biological molecules ・Hair
Electronics ・Battery materials ・Semiconductors ・Recording media

您想要觀察什麼?

What do you want to observe?

* Option

硬材質

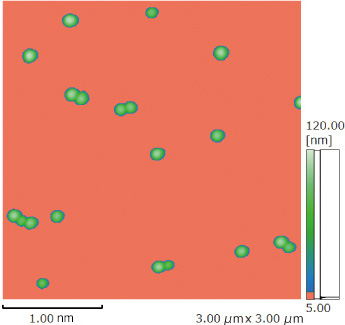

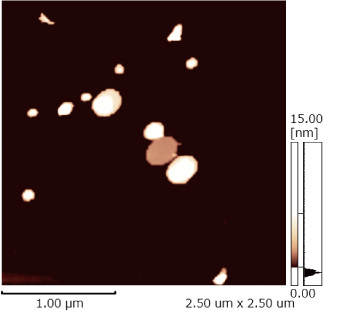

氧化矽奈米顆粒

Silica Nanoparticles

氧化矽奈米顆粒的觀察,確認奈米顆粒大小的均勻度。

生命科學與醫療

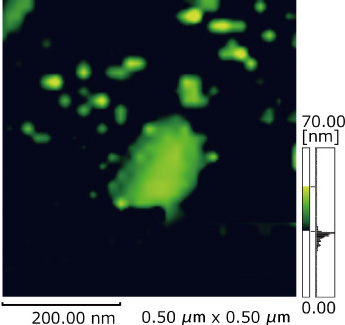

細胞外液泡

Extracellular Vesicles

中央顯示的大顆粒為細胞外液泡。藉由不僅觀察形狀,也能夠評估機械特性的能力,預期系統可用於識別和藥物輸送系統 (DDS) 研究,例如胞外體、微脂體和典型的聚合物微胞化病原體,及其他應用 (使用 Nano 3D Mapping Fast)。

軟材質

PVP/CNF 複合材質

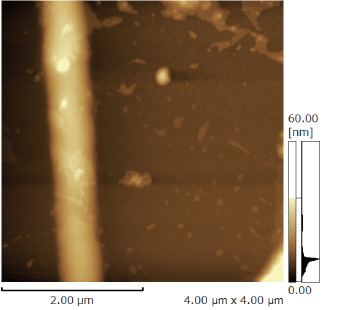

Surface Shape

Surface Shape

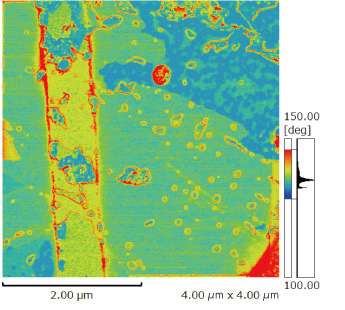

Phase

Phase

Surface Shape + Phase

Surface Shape + Phase



觀察電子自旋到矽基質上的纖維素奈米纖維 (CNF) 和聚乙烯吡咯烷酮 (PVP) 之水混合物。表面形狀影像顯示纖維的圓柱形狀,而相位影像以對比差異顯示 CNF 和 PVP 纖維的物體特性差異。
(樣品來源:三重大學生物資源研究所中井教授)

脂膜

Surface Shape

Surface Shape

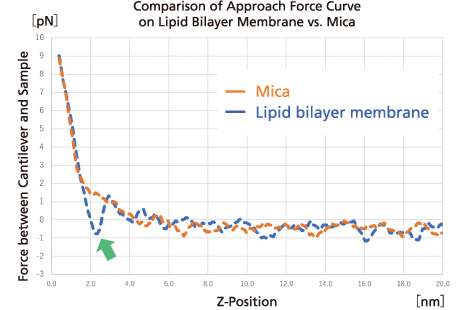

Comparison of Approach Force Curve on Lipid Bilayer Membrane vs. Mica

在表面形狀影像 (左) 的中心附近,觀察 (箭頭) 約 6 nm 厚的斑塊狀脂膜。從脂膜上方取得的力曲線 (右),顯示探針穿入膜時產生的力量變化。

電子

BaTiO3 單晶

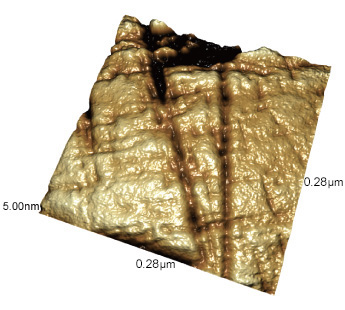

Surface Shape

Surface Shape

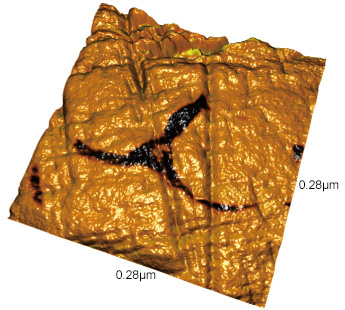

Surface Shape + Amplitude

Phase

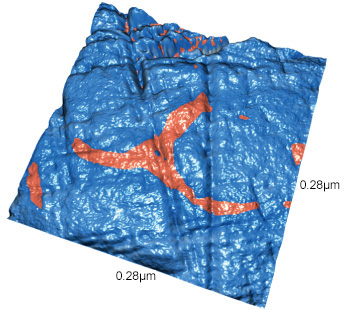

Surface Shape + Phase

Surface Shape + Phase



使用壓電力模式 (PFM) 觀察強力介電質 BaTiO 。
幅度和相位影像清楚顯示極化的區塊結構。
